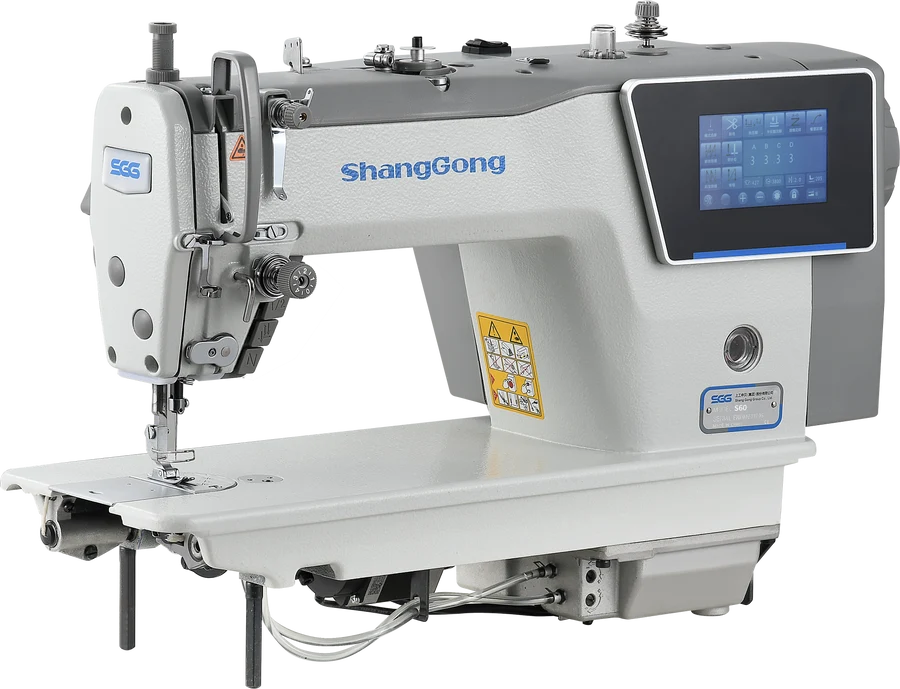

Shanggong Industrial Lockstitch Sewing Machine S60PM-W

The Shanggong S60 automatic sewing machine is designed to deliver high precision and productivity with dual stepper motor control and a fabric thickness sensor. It features a wide sewing area, oil-free dry head, modern touchscreen, and speeds of up to 5,000 stitches per minute with quiet and stable operation, making it suitable for high-volume garment factories and workshops.

• Dual Stepping Motor Control: Two precision stepper motors control needle tracing, presser foot lifting, and thread cutting for high accuracy on every stitch.

• Modern Floating Touchscreen: Electronic control panel with a modern floating screen design, user-friendly interface, and USB port.

• Oil-Free Dry Head: Completely prevents oil stains on fabrics, making it suitable for sensitive and white fabrics.

• Wide Sewing Area: Large work surface with a fabric thickness sensor for easy handling of large garment pieces.

• Quiet & Stable Operation: Low noise level of 77dB at 4,000 RPM with low vibration of 55m.

• High Speed: Maximum speed of 5,000 stitches per minute for high productivity in large-scale garment production.

• Sealed Leak-Proof Oil Tank: Closed design prevents oil leakage, with magnetic adjustment and drain screws.

• Sensor Knee Lifting: Inductive sensor for linear knee-controlled presser foot lifting for easier and more comfortable operation.

• Maximum Speed: 5,000 stitches/min

• Needle: DBX1 #14

• Stitch Length: 5.5–13 mm

• Dimensions: 685 × 285 × 570 mm

• Weight: 39/45 kg

• Noise Level: 77dB at 4,000 RPM

• Vibration: 55μm at 4,000 RPM

• Design: Sealed Oil Tank

Perfect For:

• High-Volume Garment Factories

• Shirt & T-Shirt Factories

• Jeans & Heavy Fabric Workshops

• Sewing Workshops & Fabric Production Lines
