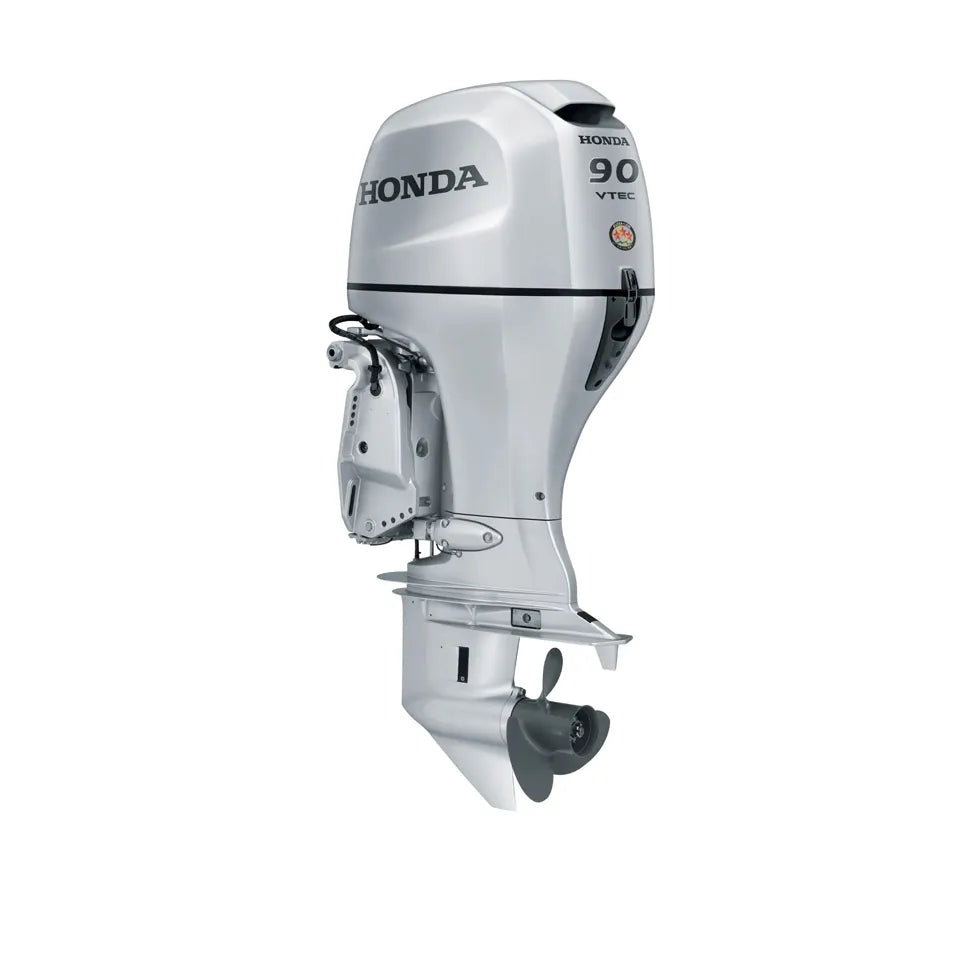

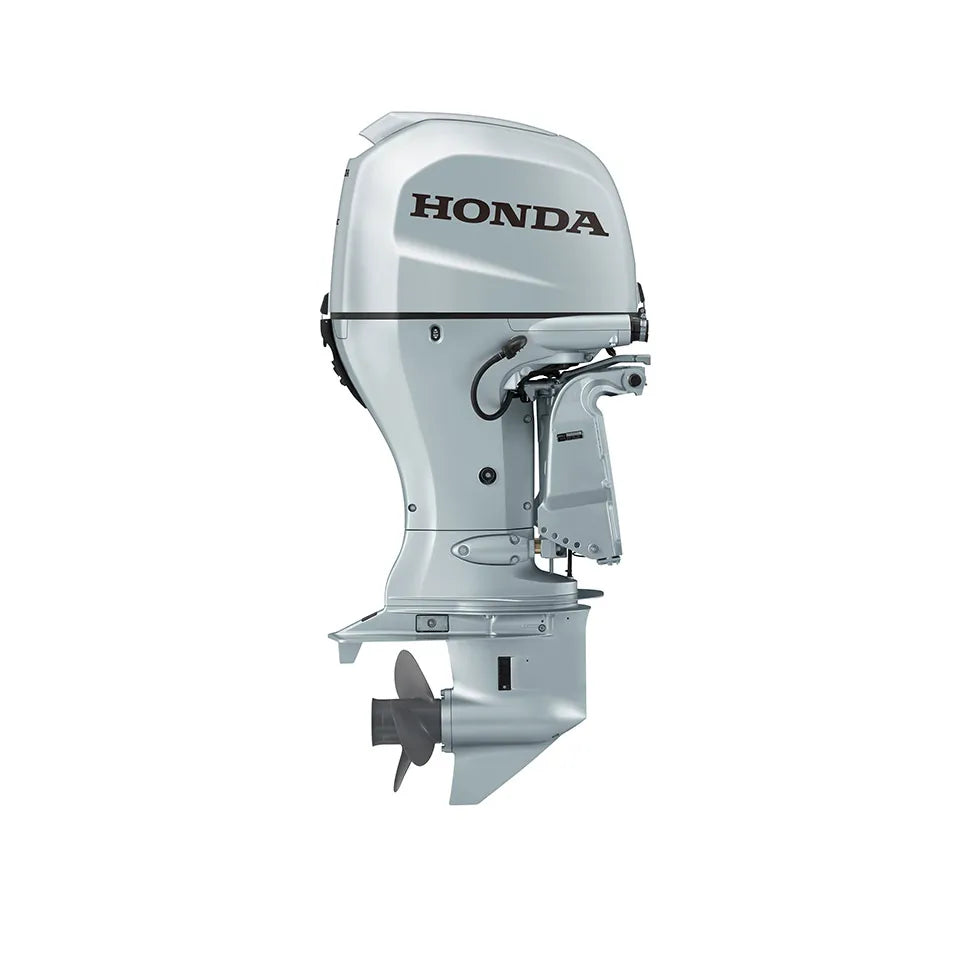

BF90 Honda Marine Engine

This marine engine combines powerful performance with high efficiency to deliver a stable and reliable operating experience across various marine applications.

It features a practical design and advanced technologies that help improve fuel efficiency while providing smooth response during operation.

It also offers easy control and the durability needed to withstand different marine operating conditions.

Features

High performance and fuel efficiency

Four-stroke design provides reliability and efficiency without the need to mix oil with fuel

Lightweight compared to its class for improved performance and easier handling

VTEC technology for smooth acceleration and additional power when needed

Programmed Fuel Injection system for improved response and operating efficiency

Lean Burn Control technology to reduce fuel consumption during cruising

BLAST system for enhanced acceleration at low speeds

High-performance gear case designed to reduce water resistance and increase speed

Triple-seal cooling system for improved durability and extended engine life

Engine warning system for protection against overheating and low oil pressure

Multi-layer corrosion protection system for marine environments

Elevated electronic components for improved stability and long-term performance

Flushport system for easy removal of salt and impurities from the engine

Easy maintenance thanks to the practical service-friendly design

Adjustable steering friction for greater comfort during operation

Specifications

Engine Type: SOHC 4-Stroke – 4 Cylinder – 16 Valve

Engine Displacement: 1496 cc

Power Output: 90 HP at 5800 rpm

Full Throttle RPM Range: 5300 – 6300 rpm

Cooling System: Water Cooled

Fuel System: Electronic Programmed Fuel Injection

Starting System: Electric Start

Gear Ratio: 2.33:1

Gear Shift: Forward – Neutral – Reverse

Alternator Output: 44 Amp

Battery Charging Output: 35 Amp

Trim Range: ‎-4° to +16°

Tilt Range: 68°

Overall Width: 480 mm

Dry Weight:

L Type: 163 kg

X Type: 166 kg

Transom Height:

L Type: 508 mm

X Type: 635 mm
